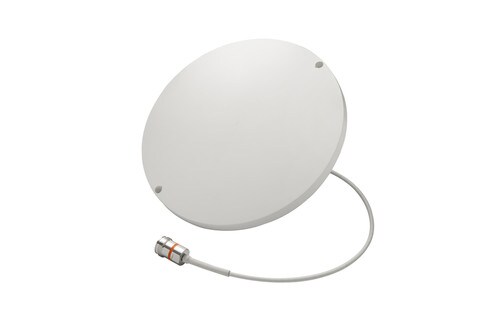

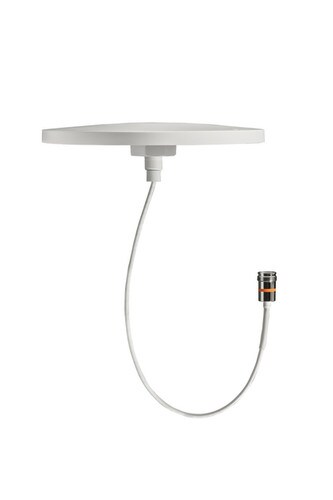

Commscope Cell-Max Low PIM Omni DAS Antenna (617-6000 MHz); 4.3-10(F)

SKU: CMAX-OUS1-UW43-I53

Cell-Max™ Low PIM Omni In-building Antenna, 617-960, 1400-1600, 1695-2700 MHz, 3300-4200 MHz and 4900-6000MHz 4.3-10.

Not recommended for metal ceilings.

Key Features:

Application: Indoor
Antenna Type: Omni
Polarization: Horizontal
Colour: White
Mounting: Thru-hole ceiling mount (optional)
Radome Material:ABS
RF Connector Interface:4.3-10 Female
Dimensions
Height: 18 mm
Outer Diameter: 220 mm
Impedance: 50 ohm
Operating Frequency Band: 617 – 698 MHz | 698 – 960 MHz | 1400 – 1500 MHz | 1695 – 2700 MHz | 3300 – 3800 MHz | 4900 – 6000 MHz
